Proposal to Add a GeoSpatial "Area" to the DarwinCore
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> <dcterms:isPartOf rdf:resource=" http://lod.taxonconcept.org/ontology/void#this%22/%3E
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-09T16:33:34-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> txn:elevation186.54</txn:elevation> txn:continentNorth America</txn:continent> txn:countryCodeUS</txn:countryCode> txn:countryUnited States</txn:country> txn:stateProvinceWisconsin</txn:stateProvince> txn:countyDoor</txn:county> txn:localityTextTown of Sevastopol</txn:localityText> txn:locationNameShivering Sands Natural Area Woods</txn:locationName> <txn:areaHasOccurrence rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... "/> <txn:areaHasObservedSpeciesConcept rdf:resource=" http://lod.taxonconcept.org/ses/ICmLC#Species%22/%3E <txn:areaHasIndividual rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... "/> <txn:areaInStateProvince rdf:resource="http://sws.geonames.org/5279468/ "/> <txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf%22/... </dwc_area:Area>
I recently added the following predicates, but have not altered my RDF examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
--------------------------------------------------------------- Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base http://www.taxonconcept.org/ / GeoSpecies Knowledge Base http://lod.geospecies.org/ About the GeoSpecies Knowledge Base http://about.geospecies.org/ ------------------------------------------------------------
Peter, dwc uses already dc:Location http://rs.tdwg.org/dwc/terms/index.htm#locationindex
is your Area sth different? Markus
On Nov 19, 2010, at 1:29, Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> <dcterms:isPartOf rdf:resource="http://lod.taxonconcept.org/ontology/void#this%22/%3E dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-09T16:33:34-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> txn:elevation186.54</txn:elevation> txn:continentNorth America</txn:continent> txn:countryCodeUS</txn:countryCode> txn:countryUnited States</txn:country> txn:stateProvinceWisconsin</txn:stateProvince> txn:countyDoor</txn:county> txn:localityTextTown of Sevastopol</txn:localityText> txn:locationNameShivering Sands Natural Area Woods</txn:locationName> <txn:areaHasOccurrence rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... <txn:areaHasObservedSpeciesConcept rdf:resource="http://lod.taxonconcept.org/ses/ICmLC#Species%22/%3E <txn:areaHasIndividual rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... <txn:areaInStateProvince rdf:resource="http://sws.geonames.org/5279468/%22/%3E <txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf%22/... </dwc_area:Area>
I recently added the following predicates, but have not altered my RDF examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
tdwg-content mailing list tdwg-content@lists.tdwg.org http://lists.tdwg.org/mailman/listinfo/tdwg-content
Pete, I was going to ask questions about this the first time you mentioned it, but got distracted. I guess the main question I have is: what you would "do" with it? I guess it could be considered an identifier for a spot on the earth, but based on what I've read about guids it's considered to be a "no-no" to try to infer stuff about a resource by looking at the form of the identifier. Rather one should look at the metadata associated with the identifier to understand things about the identifier (which you provide with geo:lat and geo:long). I suppose that one could consider this to be some kind of identifier that could be reused, but particularly since the precision of your lat and long are 8 digits, it is highly unlikely that anybody besides you is ever going to choose to use this identifier over (vs. 44.86,-87.23 which would be imprecise enough to include a lot of places to which people might want to refer). I may just be misunderstanding the purpose you intend.
The other question is a more general one. Do we need more ways to specify uncertainty in location than we already have? We already have dwc:coordinateUncertaintyInMeters and dwc:coordinatePrecision . I've been using dwc:coordinateUncertaintyInMeters with a seat-of-the pants estimate on my part about how accurate I think my geolocation is (expressed in meters). That may be a misuse of this term because I'm really thinking radius around a point rather than uncertainty of coordinates. But as a practical matter, if I think my estimate of location is good to 1000 m (vs. 100 m or 10000 m) does it really matter if I'm talking about a square or a circle? In any case, I'm saying, this lat/long could be off from the actual location by a km. If I had a GPS receiver that allowed me to download the actual estimated accuracy (based on satellite signals and whatever else), then I would populate dwc:coordinateUncertaintyInMeters with that, but mine crummy old one doesn't. To me the most important thing is for users to know whether this is a ballpark estimate or if they could expect to actually be able to walk up to the tree using the coordinates they give.
Steve
Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> <dcterms:isPartOf rdf:resource="http://lod.taxonconcept.org/ontology/void#this%22/%3E
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-09T16:33:34-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> txn:elevation186.54</txn:elevation> txn:continentNorth America</txn:continent> txn:countryCodeUS</txn:countryCode> txn:countryUnited States</txn:country> txn:stateProvinceWisconsin</txn:stateProvince> txn:countyDoor</txn:county> txn:localityTextTown of Sevastopol</txn:localityText> txn:locationNameShivering Sands Natural Area Woods</txn:locationName> <txn:areaHasOccurrence rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... <txn:areaHasObservedSpeciesConcept rdf:resource="http://lod.taxonconcept.org/ses/ICmLC#Species%22/%3E <txn:areaHasIndividual rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... <txn:areaInStateProvince rdf:resource="http://sws.geonames.org/5279468/%22/%3E <txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf%22/... </dwc_area:Area>
I recently added the following predicates, but have not altered my RDF examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base http://www.taxonconcept.org/ / GeoSpecies Knowledge Base http://lod.geospecies.org/ About the GeoSpecies Knowledge Base http://about.geospecies.org/
Hi Steve and Markus,
There are several levels to this so I will start with the advantages of the geo vocabulary.
What I am proposing is that we add this so people can use it if they want to but it would not be required.
Part 1: The geo vocabulary
The geo vocabulary is a widely understood standard that is supported by many tools.
http://www.w3.org/2003/01/geo/
If allows tools to properly interpret and map records as demonstrated by these SPARQL Query.
PREFIX txn: http://lod.taxonconcept.org/ontology/txn.owl# PREFIX boloria_selene: http://lod.taxonconcept.org/ses/ICmLC#Species
DESCRIBE ?x WHERE { ?x txn:occurrenceHasSpeciesConcept boloria_selene:. }
PREFIX txn: http://lod.taxonconcept.org/ontology/txn.owl# PREFIX boloria_selene: http://lod.taxonconcept.org/ses/ICmLC#Species
DESCRIBE ?x WHERE { ?x txn:areaHasObservedSpeciesConcept boloria_selene:. } http://bit.ly/bZwkRD

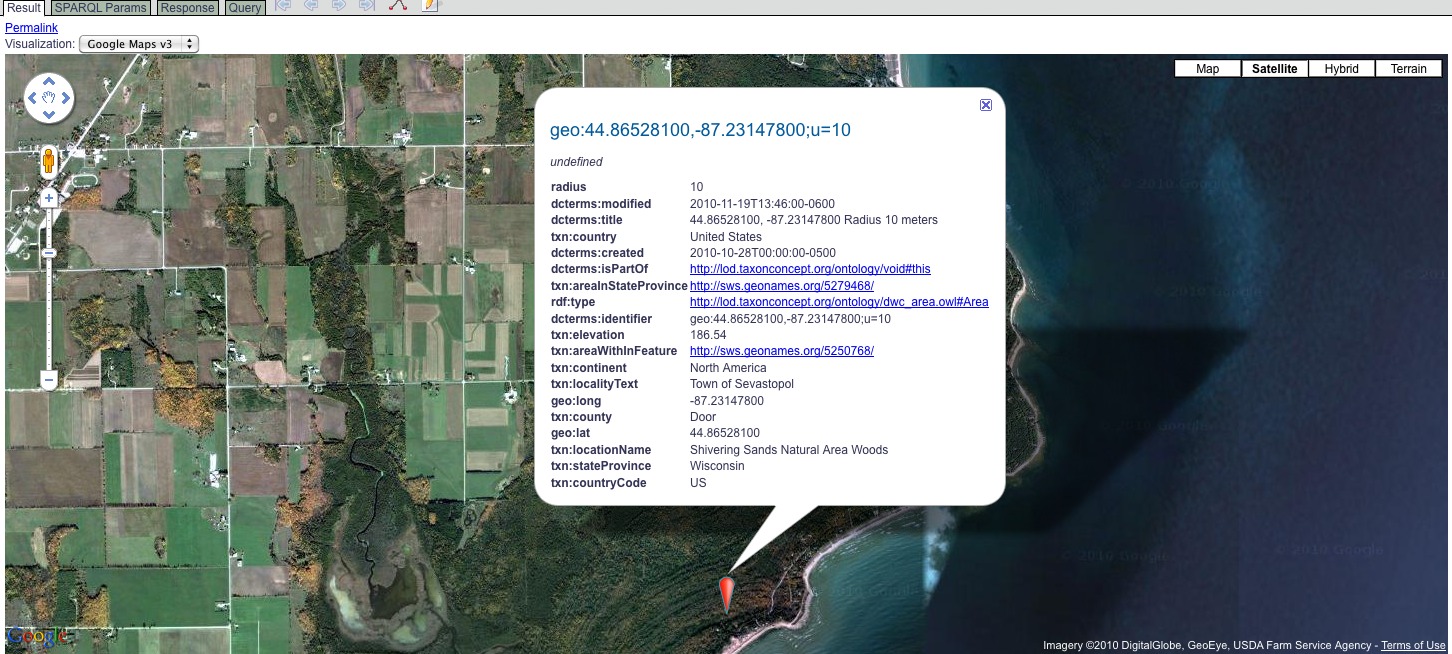

I am having some issues with my queries going directly to a pretty map but you should be able to tweek the queries above to give you something like the screen shot that is attached to this email.
Part 2
Extending the geo vocabulary with a radius using a ietf.org proposed standard.
The main problem with it is that it does not directly support an extent / radius / pointRadiusSpatialFit measure.
What I did in this example is that I extended the geo vocabulary to it included a radius measure, using the proposed ietf standard listed below
So it is no longer a Point but an "Area" - Which is an instance of the "Location" described by Markus.
Here is an example with some of the non-relevant stuff taken out.
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-19T22:17:37-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> <dwc_area:areaWithInFeature rdf:resource="http://sws.geonames.org/5250768/ "/> <wdrs:describedBy rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf%22/... </dwc_area:Area>
What I have done with my examples is standardized on a fixed precision to the lat and log.
The level of precision does not have be this high, we just need to have an agreed on level of precision. (Probably something that we should do anyway since the actual precision should not be inferred by the significant digits.)
So Steve's 44.86,-87.23 => 44.86000000, -87.23000000.
Now we have a standard urn-like entity for an area that follows the proposed ietf standard.
Other data like soil type, weather etc can be tied to these areas.
Area1 => hasDegreeDayValue "2105"
Other areas can be related to this area Area1 within Area2, AreaB near AreaC etc.
AreaZ within NaturePreserveB
Also the following was recently proposed by the ietf.org
*A Uniform Resource Identifier for Geographic Locations* ('geo' URI) http://tools.ietf.org/html/rfc5870 (from Sean Gillies) * Not clear that all the systems understand this but URIburner and Virtuoso interprets these as a URN type thing so they work but are not understood in the way that the "geo" vocabulary is understood. Note that if and when this becomes a standard it will allow these "Areas" to be universally understood.
What this means is that I can markup my 10,0000 mosquito records from one location with one URN type id. * * In summary, these allow more efficient occurrence records that leverage the existing support for the geo vocabulary and the probably support for the ietf.org standard.
I have added some predicate to the vocabulary that allow inferencing from the area through the geonames hierarchy.
This would allow one to infer the following about the record above.
Area >* *areaWithInFeature => Door County => Wisconsin => United States => North America = Earth
This does not mean that additions could also be made that allow inferencing up some other non-geonames hierarchy.
Here is the ontology http://lod.taxonconcept.org/ontology/dwc_area.owl Here is the owl doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
Here is an example of an occurrence record that uses this:
HTML http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.html RDF http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf
Respectfully,
- Pete
On Fri, Nov 19, 2010 at 12:32 PM, Steve Baskauf < steve.baskauf@vanderbilt.edu> wrote:
Pete, I was going to ask questions about this the first time you mentioned it, but got distracted. I guess the main question I have is: what you would "do" with it? I guess it could be considered an identifier for a spot on the earth, but based on what I've read about guids it's considered to be a "no-no" to try to infer stuff about a resource by looking at the form of the identifier. Rather one should look at the metadata associated with the identifier to understand things about the identifier (which you provide with geo:lat and geo:long). I suppose that one could consider this to be some kind of identifier that could be reused, but particularly since the precision of your lat and long are 8 digits, it is highly unlikely that anybody besides you is ever going to choose to use this identifier over (vs. 44.86,-87.23 which would be imprecise enough to include a lot of places to which people might want to refer). I may just be misunderstanding the purpose you intend.
The other question is a more general one. Do we need more ways to specify uncertainty in location than we already have? We already have dwc:coordinateUncertaintyInMeters and dwc:coordinatePrecision . I've been using dwc:coordinateUncertaintyInMeters with a seat-of-the pants estimate on my part about how accurate I think my geolocation is (expressed in meters). That may be a misuse of this term because I'm really thinking radius around a point rather than uncertainty of coordinates. But as a practical matter, if I think my estimate of location is good to 1000 m (vs. 100 m or 10000 m) does it really matter if I'm talking about a square or a circle? In any case, I'm saying, this lat/long could be off from the actual location by a km. If I had a GPS receiver that allowed me to download the actual estimated accuracy (based on satellite signals and whatever else), then I would populate dwc:coordinateUncertaintyInMeters with that, but mine crummy old one doesn't. To me the most important thing is for users to know whether this is a ballpark estimate or if they could expect to actually be able to walk up to the tree using the coordinates they give.
Steve
Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> <dcterms:isPartOf rdf:resource=" http://lod.taxonconcept.org/ontology/void#this%22/%3E
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-09T16:33:34-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> txn:elevation186.54</txn:elevation> txn:continentNorth America</txn:continent> txn:countryCodeUS</txn:countryCode> txn:countryUnited States</txn:country> txn:stateProvinceWisconsin</txn:stateProvince> txn:countyDoor</txn:county> txn:localityTextTown of Sevastopol</txn:localityText> txn:locationNameShivering Sands Natural Area Woods</txn:locationName> <txn:areaHasOccurrence rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... "/> <txn:areaHasObservedSpeciesConcept rdf:resource=" http://lod.taxonconcept.org/ses/ICmLC#Species%22/%3E <txn:areaHasIndividual rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... "/> <txn:areaInStateProvince rdf:resource=" http://sws.geonames.org/5279468/%22/%3E <txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf "/> </dwc_area:Area>
I recently added the following predicates, but have not altered my RDF examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base http://www.taxonconcept.org/ / GeoSpecies Knowledge Base http://lod.geospecies.org/ About the GeoSpecies Knowledge Base http://about.geospecies.org/
-- Steven J. Baskauf, Ph.D., Senior Lecturer Vanderbilt University Dept. of Biological Sciences
postal mail address: VU Station B 351634 Nashville, TN 37235-1634, U.S.A.
delivery address: 2125 Stevenson Center 1161 21st Ave., S. Nashville, TN 37235
office: 2128 Stevenson Center phone: (615) 343-4582, fax: (615) 343-6707http://bioimages.vanderbilt.edu
I noticed a small bug that is fixed in the RDF and should show up on the cloud but I will need to clean up my own endpoint later tonight.
This mean the queries will not work while this is being reloaded.
I will do this at 12:00 am CST, should be back up by 1:00am CST.
This issue is that the triplestore still has this predicate.
txn:areaWithInFeature
in addition to
dwc_area:areaWithInFeature
- Pete
On Sun, Nov 21, 2010 at 4:14 PM, Peter DeVries pete.devries@gmail.comwrote:
Hi Steve and Markus,
There are several levels to this so I will start with the advantages of the geo vocabulary.
What I am proposing is that we add this so people can use it if they want to but it would not be required.
Part 1: The geo vocabulary
The geo vocabulary is a widely understood standard that is supported by many tools.
http://www.w3.org/2003/01/geo/
If allows tools to properly interpret and map records as demonstrated by these SPARQL Query.
PREFIX txn: http://lod.taxonconcept.org/ontology/txn.owl# PREFIX boloria_selene: http://lod.taxonconcept.org/ses/ICmLC#Species
DESCRIBE ?x WHERE { ?x txn:occurrenceHasSpeciesConcept boloria_selene:. }
http://bit.ly/ambJHX
PREFIX txn: http://lod.taxonconcept.org/ontology/txn.owl# PREFIX boloria_selene: http://lod.taxonconcept.org/ses/ICmLC#Species
DESCRIBE ?x WHERE { ?x txn:areaHasObservedSpeciesConcept boloria_selene:. } http://bit.ly/bZwkRD
I am having some issues with my queries going directly to a pretty map but you should be able to tweek the queries above to give you something like the screen shot that is attached to this email.
Part 2
Extending the geo vocabulary with a radius using a ietf.org proposed standard.
The main problem with it is that it does not directly support an extent / radius / pointRadiusSpatialFit measure.
What I did in this example is that I extended the geo vocabulary to it included a radius measure, using the proposed ietf standard listed below
So it is no longer a Point but an "Area" - Which is an instance of the "Location" described by Markus.
Here is an example with some of the non-relevant stuff taken out.
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-19T22:17:37-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> <dwc_area:areaWithInFeature rdf:resource=" http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf "/> </dwc_area:Area>
What I have done with my examples is standardized on a fixed precision to the lat and log.
The level of precision does not have be this high, we just need to have an agreed on level of precision. (Probably something that we should do anyway since the actual precision should not be inferred by the significant digits.)
So Steve's 44.86,-87.23 => 44.86000000, -87.23000000.
Now we have a standard urn-like entity for an area that follows the proposed ietf standard.
Other data like soil type, weather etc can be tied to these areas.
Area1 => hasDegreeDayValue "2105"
Other areas can be related to this area Area1 within Area2, AreaB near AreaC etc.
AreaZ within NaturePreserveB
Also the following was recently proposed by the ietf.org
*A Uniform Resource Identifier for Geographic Locations* ('geo' URI) http://tools.ietf.org/html/rfc5870 (from Sean Gillies)
- Not clear that all the systems understand this but URIburner and Virtuoso
interprets these as a URN type thing so they work but are not understood in the way that the "geo" vocabulary is understood. Note that if and when this becomes a standard it will allow these "Areas" to be universally understood.
What this means is that I can markup my 10,0000 mosquito records from one location with one URN type id.
In summary, these allow more efficient occurrence records that leverage the existing support for the geo vocabulary and the probably support for the ietf.org standard.
I have added some predicate to the vocabulary that allow inferencing from the area through the geonames hierarchy.
This would allow one to infer the following about the record above.
Area >* *areaWithInFeature => Door County => Wisconsin => United States => North America = Earth
This does not mean that additions could also be made that allow inferencing up some other non-geonames hierarchy.
Here is the ontology http://lod.taxonconcept.org/ontology/dwc_area.owl Here is the owl doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
Here is an example of an occurrence record that uses this:
HTML http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.html RDF http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf
Respectfully,
- Pete
On Fri, Nov 19, 2010 at 12:32 PM, Steve Baskauf < steve.baskauf@vanderbilt.edu> wrote:
Pete, I was going to ask questions about this the first time you mentioned it, but got distracted. I guess the main question I have is: what you would "do" with it? I guess it could be considered an identifier for a spot on the earth, but based on what I've read about guids it's considered to be a "no-no" to try to infer stuff about a resource by looking at the form of the identifier. Rather one should look at the metadata associated with the identifier to understand things about the identifier (which you provide with geo:lat and geo:long). I suppose that one could consider this to be some kind of identifier that could be reused, but particularly since the precision of your lat and long are 8 digits, it is highly unlikely that anybody besides you is ever going to choose to use this identifier over (vs. 44.86,-87.23 which would be imprecise enough to include a lot of places to which people might want to refer). I may just be misunderstanding the purpose you intend.
The other question is a more general one. Do we need more ways to specify uncertainty in location than we already have? We already have dwc:coordinateUncertaintyInMeters and dwc:coordinatePrecision . I've been using dwc:coordinateUncertaintyInMeters with a seat-of-the pants estimate on my part about how accurate I think my geolocation is (expressed in meters). That may be a misuse of this term because I'm really thinking radius around a point rather than uncertainty of coordinates. But as a practical matter, if I think my estimate of location is good to 1000 m (vs. 100 m or 10000 m) does it really matter if I'm talking about a square or a circle? In any case, I'm saying, this lat/long could be off from the actual location by a km. If I had a GPS receiver that allowed me to download the actual estimated accuracy (based on satellite signals and whatever else), then I would populate dwc:coordinateUncertaintyInMeters with that, but mine crummy old one doesn't. To me the most important thing is for users to know whether this is a ballpark estimate or if they could expect to actually be able to walk up to the tree using the coordinates they give.
Steve
Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> <dcterms:isPartOf rdf:resource=" http://lod.taxonconcept.org/ontology/void#this%22/%3E
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-09T16:33:34-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> txn:elevation186.54</txn:elevation> txn:continentNorth America</txn:continent> txn:countryCodeUS</txn:countryCode> txn:countryUnited States</txn:country> txn:stateProvinceWisconsin</txn:stateProvince> txn:countyDoor</txn:county> txn:localityTextTown of Sevastopol</txn:localityText> txn:locationNameShivering Sands Natural Area Woods</txn:locationName> <txn:areaHasOccurrence rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... "/> <txn:areaHasObservedSpeciesConcept rdf:resource=" http://lod.taxonconcept.org/ses/ICmLC#Species%22/%3E <txn:areaHasIndividual rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... "/> <txn:areaInStateProvince rdf:resource=" http://sws.geonames.org/5279468/%22/%3E <txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf "/> </dwc_area:Area>
I recently added the following predicates, but have not altered my RDF examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base http://www.taxonconcept.org/ / GeoSpecies Knowledge Base http://lod.geospecies.org/ About the GeoSpecies Knowledge Base http://about.geospecies.org/
-- Steven J. Baskauf, Ph.D., Senior Lecturer Vanderbilt University Dept. of Biological Sciences
postal mail address: VU Station B 351634 Nashville, TN 37235-1634, U.S.A.
delivery address: 2125 Stevenson Center 1161 21st Ave., S. Nashville, TN 37235
office: 2128 Stevenson Center phone: (615) 343-4582, fax: (615) 343-6707http://bioimages.vanderbilt.edu
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base http://www.taxonconcept.org/ / GeoSpecies Knowledge Base http://lod.geospecies.org/ About the GeoSpecies Knowledge Base http://about.geospecies.org/
So it is no longer a Point but an "Area" - Which is an instance of the "Location" described by Markus.
I can see the reasons for changing the way we describe an area/location, but my point simply is we have already a Location class in darwin core, so why introduce another class for the same thing? That just doesnt seem right to me.
In general I feel lots of the latest threads (though I have to admit I hadnt had the time to read them all) seem to rather discuss the (re)creation of a new tdwg ontology instead of suggesting changes to darwin core. Darwin Core is ratified and I think we should refrain from taking every single term it has to pieces, redefine its definition and reconstruct it in different ways because of linked data demands. We might be better off to start something new for the LOD world.
Markus
Here is an example with some of the non-relevant stuff taken out.
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-19T22:17:37-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> <dwc_area:areaWithInFeature rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf%22/... </dwc_area:Area>
What I have done with my examples is standardized on a fixed precision to the lat and log.
The level of precision does not have be this high, we just need to have an agreed on level of precision. (Probably something that we should do anyway since the actual precision should not be inferred by the significant digits.)
So Steve's 44.86,-87.23 => 44.86000000, -87.23000000.
Now we have a standard urn-like entity for an area that follows the proposed ietf standard.
Other data like soil type, weather etc can be tied to these areas.
Area1 => hasDegreeDayValue "2105"
Other areas can be related to this area Area1 within Area2, AreaB near AreaC etc.
AreaZ within NaturePreserveB
Also the following was recently proposed by the ietf.org
A Uniform Resource Identifier for Geographic Locations ('geo' URI) http://tools.ietf.org/html/rfc5870 (from Sean Gillies)
- Not clear that all the systems understand this but URIburner and Virtuoso interprets these as a URN type thing so they work but are not understood in the way that the "geo" vocabulary is understood. Note that if and when this becomes a standard it will allow these "Areas" to be universally understood.
What this means is that I can markup my 10,0000 mosquito records from one location with one URN type id.
In summary, these allow more efficient occurrence records that leverage the existing support for the geo vocabulary and the probably support for the ietf.org standard.
I have added some predicate to the vocabulary that allow inferencing from the area through the geonames hierarchy.
This would allow one to infer the following about the record above.
Area > areaWithInFeature => Door County => Wisconsin => United States => North America = Earth
This does not mean that additions could also be made that allow inferencing up some other non-geonames hierarchy.
Here is the ontology http://lod.taxonconcept.org/ontology/dwc_area.owl Here is the owl doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
Here is an example of an occurrence record that uses this:
HTML http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.html RDF http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf
Respectfully,
- Pete
On Fri, Nov 19, 2010 at 12:32 PM, Steve Baskauf steve.baskauf@vanderbilt.edu wrote: Pete, I was going to ask questions about this the first time you mentioned it, but got distracted. I guess the main question I have is: what you would "do" with it? I guess it could be considered an identifier for a spot on the earth, but based on what I've read about guids it's considered to be a "no-no" to try to infer stuff about a resource by looking at the form of the identifier. Rather one should look at the metadata associated with the identifier to understand things about the identifier (which you provide with geo:lat and geo:long). I suppose that one could consider this to be some kind of identifier that could be reused, but particularly since the precision of your lat and long are 8 digits, it is highly unlikely that anybody besides you is ever going to choose to use this identifier over (vs. 44.86,-87.23 which would be imprecise enough to include a lot of places to which people might want to refer). I may just be misunderstanding the purpose you intend.
The other question is a more general one. Do we need more ways to specify uncertainty in location than we already have? We already have dwc:coordinateUncertaintyInMeters and dwc:coordinatePrecision . I've been using dwc:coordinateUncertaintyInMeters with a seat-of-the pants estimate on my part about how accurate I think my geolocation is (expressed in meters). That may be a misuse of this term because I'm really thinking radius around a point rather than uncertainty of coordinates. But as a practical matter, if I think my estimate of location is good to 1000 m (vs. 100 m or 10000 m) does it really matter if I'm talking about a square or a circle? In any case, I'm saying, this lat/long could be off from the actual location by a km. If I had a GPS receiver that allowed me to download the actual estimated accuracy (based on satellite signals and whatever else), then I would populate dwc:coordinateUncertaintyInMeters with that, but mine crummy old one doesn't. To me the most important thing is for users to know whether this is a ballpark estimate or if they could expect to actually be able to walk up to the tree using the coordinates they give.
Steve
Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> <dcterms:isPartOf rdf:resource="http://lod.taxonconcept.org/ontology/void#this%22/%3E dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-09T16:33:34-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> txn:elevation186.54</txn:elevation> txn:continentNorth America</txn:continent> txn:countryCodeUS</txn:countryCode> txn:countryUnited States</txn:country> txn:stateProvinceWisconsin</txn:stateProvince> txn:countyDoor</txn:county> txn:localityTextTown of Sevastopol</txn:localityText> txn:locationNameShivering Sands Natural Area Woods</txn:locationName> <txn:areaHasOccurrence rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... <txn:areaHasObservedSpeciesConcept rdf:resource="http://lod.taxonconcept.org/ses/ICmLC#Species%22/%3E <txn:areaHasIndividual rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... <txn:areaInStateProvince rdf:resource="http://sws.geonames.org/5279468/%22/%3E <txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf%22/... </dwc_area:Area>
I recently added the following predicates, but have not altered my RDF examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
-- Steven J. Baskauf, Ph.D., Senior Lecturer Vanderbilt University Dept. of Biological Sciences
postal mail address: VU Station B 351634 Nashville, TN 37235-1634, U.S.A.
delivery address: 2125 Stevenson Center 1161 21st Ave., S. Nashville, TN 37235
office: 2128 Stevenson Center phone: (615) 343-4582, fax: (615) 343-6707
http://bioimages.vanderbilt.edu
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
<area_sparql_query.jpg>
Hi Markus,
In general I feel lots of the latest threads (though I have to admit I hadnt
had the time to read them all) seem to rather discuss the (re)creation of a new tdwg ontology instead of suggesting changes to darwin core. Darwin Core is ratified and I think we should refrain from taking every single term it has to pieces, redefine its definition and reconstruct it in different ways because of linked data demands.
We might be better off to start something new for the LOD world.
I agree. For three main reasons,
1) The current DarwinCore works for what it was originally intended. 2) Creating something that works well for the semantic web is somewhat tricky and will take some time. 3) I think this discussion is confusing potential DarwinCore users.
My main goal was to figure out a "home" for this ontology, and it seems as if TDWG only wants to use things in it's namespace.
It is my feeling that other groups like EUNIS will want to use this so I would like to figure out the final ontology uri soon.
I could add this to the txn ontology, but I think it has utility even outside biodiversity informatics.
- Pete
Here is an example with some of the non-relevant stuff taken out.
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10
meters</dcterms:title>
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier>
dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-19T22:17:37-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> <dwc_area:areaWithInFeature rdf:resource="
http://sws.geonames.org/5250768/%22/%3E
<wdrs:describedBy rdf:resource="
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf "/>
</dwc_area:Area>
What I have done with my examples is standardized on a fixed precision to
the lat and log.
The level of precision does not have be this high, we just need to have
an agreed on level of precision.
(Probably something that we should do anyway since the actual precision
should not be inferred by the significant digits.)
So Steve's 44.86,-87.23 => 44.86000000, -87.23000000.
Now we have a standard urn-like entity for an area that follows the
proposed ietf standard.
Other data like soil type, weather etc can be tied to these areas.
Area1 => hasDegreeDayValue "2105"
Other areas can be related to this area Area1 within Area2, AreaB near
AreaC etc.
AreaZ within NaturePreserveB
Also the following was recently proposed by the ietf.org
A Uniform Resource Identifier for Geographic Locations ('geo' URI) http://tools.ietf.org/html/rfc5870 (from Sean Gillies)
- Not clear that all the systems understand this but URIburner and
Virtuoso interprets these as a URN type thing so they work but are not understood in the way that the "geo" vocabulary is understood. Note that if and when this becomes a standard it will allow these "Areas" to be universally understood.
What this means is that I can markup my 10,0000 mosquito records from one
location with one URN type id.
In summary, these allow more efficient occurrence records that leverage
the existing support for the geo vocabulary and the probably support for the ietf.org standard.
I have added some predicate to the vocabulary that allow inferencing from
the area through the geonames hierarchy.
This would allow one to infer the following about the record above.
Area > areaWithInFeature => Door County => Wisconsin => United States =>
North America = Earth
This does not mean that additions could also be made that allow
inferencing up some other non-geonames hierarchy.
Here is the ontology http://lod.taxonconcept.org/ontology/dwc_area.owl Here is the owl doc
http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
Here is an example of an occurrence record that uses this:
HTML
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.html
RDF
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf
Respectfully,
- Pete
On Fri, Nov 19, 2010 at 12:32 PM, Steve Baskauf <
steve.baskauf@vanderbilt.edu> wrote:
Pete, I was going to ask questions about this the first time you mentioned it,
but got distracted. I guess the main question I have is: what you would "do" with it? I guess it could be considered an identifier for a spot on the earth, but based on what I've read about guids it's considered to be a "no-no" to try to infer stuff about a resource by looking at the form of the identifier. Rather one should look at the metadata associated with the identifier to understand things about the identifier (which you provide with geo:lat and geo:long). I suppose that one could consider this to be some kind of identifier that could be reused, but particularly since the precision of your lat and long are 8 digits, it is highly unlikely that anybody besides you is ever going to choose to use this identifier over (vs. 44.86,-87.23 which would be imprecise enough to include a lot of places to which people might want to refer). I may just be misunderstanding the purpose you intend.
The other question is a more general one. Do we need more ways to
specify uncertainty in location than we already have? We already have dwc:coordinateUncertaintyInMeters and dwc:coordinatePrecision . I've been using dwc:coordinateUncertaintyInMeters with a seat-of-the pants estimate on my part about how accurate I think my geolocation is (expressed in meters). That may be a misuse of this term because I'm really thinking radius around a point rather than uncertainty of coordinates. But as a practical matter, if I think my estimate of location is good to 1000 m (vs. 100 m or 10000 m) does it really matter if I'm talking about a square or a circle? In any case, I'm saying, this lat/long could be off from the actual location by a km. If I had a GPS receiver that allowed me to download the actual estimated accuracy (based on satellite signals and whatever else), then I would populate dwc:coordinateUncertaintyInMeters with that, but mine crummy old one doesn't. To me the most important thing is for users to know whether this is a ballpark estimate or if they could expect to actually be able to walk up to the tree using the coordinates they give.
Steve
Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows
pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something
like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood
urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary
but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my
proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10
meters</dcterms:title>
<dcterms:isPartOf rdf:resource="http://lod.taxonconcept.org/ontology/void#this%22/%3E
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier>
<dcterms:created>2010-10-28T00:00:00-0500</dcterms:created> <dcterms:modified>2010-11-09T16:33:34-0600</dcterms:modified> <geo:lat>44.86528100</geo:lat> <geo:long>-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> <txn:elevation>186.54</txn:elevation> <txn:continent>North America</txn:continent> <txn:countryCode>US</txn:countryCode> <txn:country>United States</txn:country> <txn:stateProvince>Wisconsin</txn:stateProvince> <txn:county>Door</txn:county> <txn:localityText>Town of Sevastopol</txn:localityText> <txn:locationName>Shivering Sands Natural AreaWoods</txn:locationName>
<txn:areaHasOccurrence rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... "/>
<txn:areaHasObservedSpeciesConcept rdf:resource="http://lod.taxonconcept.org/ses/ICmLC#Species%22/%3E
<txn:areaHasIndividual rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... "/>
<txn:areaInStateProvince rdf:resource="http://sws.geonames.org/5279468/%22/%3E
<txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/"/> <wdrs:describedBy rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf "/>
</dwc_area:Area>
I recently added the following predicates, but have not altered my RDF
examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was
to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with
some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
-- Steven J. Baskauf, Ph.D., Senior Lecturer Vanderbilt University Dept. of Biological Sciences
postal mail address: VU Station B 351634 Nashville, TN 37235-1634, U.S.A.
delivery address: 2125 Stevenson Center 1161 21st Ave., S. Nashville, TN 37235
office: 2128 Stevenson Center phone: (615) 343-4582, fax: (615) 343-6707
http://bioimages.vanderbilt.edu
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
<area_sparql_query.jpg>
4. Hundreds of millions of existing occurrence records already live in relational databases with their own choice of geospatial and other vocabularies, some standard, some not. Except in the few(?) cases that their Relational schema is DwC, they have to map their local schemas to DwC for their service responses. It's likely inconsequentially more work to map to some other vocabulary that is also semantically similar to theirs than to map to DDwC. The main burden will fall on Markus and other tool builders who help make mapping issues invisible to undersupported data providers in ways that don't depend very much on what the mapping is from. They'll have robustness requirements imposed on them which become a matter of choice when the provider and the map maker are one in the same.
On Mon, Nov 22, 2010 at 10:48 AM, Peter DeVries pete.devries@gmail.com wrote:
Hi Markus,
In general I feel lots of the latest threads (though I have to admit I hadnt had the time to read them all) seem to rather discuss the (re)creation of a new tdwg ontology instead of suggesting changes to darwin core. Darwin Core is ratified and I think we should refrain from taking every single term it has to pieces, redefine its definition and reconstruct it in different ways because of linked data demands.
We might be better off to start something new for the LOD world.
I agree. For three main reasons,
- The current DarwinCore works for what it was originally intended.
- Creating something that works well for the semantic web is somewhat
tricky and will take some time. 3) I think this discussion is confusing potential DarwinCore users. My main goal was to figure out a "home" for this ontology, and it seems as if TDWG only wants to use things in it's namespace. It is my feeling that other groups like EUNIS will want to use this so I would like to figure out the final ontology uri soon. I could add this to the txn ontology, but I think it has utility even outside biodiversity informatics.
- Pete
Here is an example with some of the non-relevant stuff taken out.
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title>
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-19T22:17:37-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> <dwc_area:areaWithInFeature rdf:resource="http://sws.geonames.org/5250768/%22/%3E wdrs:describedBy rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf"/ </dwc_area:Area>
What I have done with my examples is standardized on a fixed precision to the lat and log.
The level of precision does not have be this high, we just need to have an agreed on level of precision. (Probably something that we should do anyway since the actual precision should not be inferred by the significant digits.)
So Steve's 44.86,-87.23 => 44.86000000, -87.23000000.
Now we have a standard urn-like entity for an area that follows the proposed ietf standard.
Other data like soil type, weather etc can be tied to these areas.
Area1 => hasDegreeDayValue "2105"
Other areas can be related to this area Area1 within Area2, AreaB near AreaC etc.
AreaZ within NaturePreserveB
Also the following was recently proposed by the ietf.org
A Uniform Resource Identifier for Geographic Locations ('geo' URI) http://tools.ietf.org/html/rfc5870 (from Sean Gillies)
- Not clear that all the systems understand this but URIburner and
Virtuoso interprets these as a URN type thing so they work but are not understood in the way that the "geo" vocabulary is understood. Note that if and when this becomes a standard it will allow these "Areas" to be universally understood.
What this means is that I can markup my 10,0000 mosquito records from one location with one URN type id.
In summary, these allow more efficient occurrence records that leverage the existing support for the geo vocabulary and the probably support for the ietf.org standard.
I have added some predicate to the vocabulary that allow inferencing from the area through the geonames hierarchy.
This would allow one to infer the following about the record above.
Area > areaWithInFeature => Door County => Wisconsin => United States => North America = Earth
This does not mean that additions could also be made that allow inferencing up some other non-geonames hierarchy.
Here is the ontology http://lod.taxonconcept.org/ontology/dwc_area.owl Here is the owl doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
Here is an example of an occurrence record that uses this:
HTML http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.html RDF http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf
Respectfully,
- Pete
On Fri, Nov 19, 2010 at 12:32 PM, Steve Baskauf steve.baskauf@vanderbilt.edu wrote: Pete, I was going to ask questions about this the first time you mentioned it, but got distracted. I guess the main question I have is: what you would "do" with it? I guess it could be considered an identifier for a spot on the earth, but based on what I've read about guids it's considered to be a "no-no" to try to infer stuff about a resource by looking at the form of the identifier. Rather one should look at the metadata associated with the identifier to understand things about the identifier (which you provide with geo:lat and geo:long). I suppose that one could consider this to be some kind of identifier that could be reused, but particularly since the precision of your lat and long are 8 digits, it is highly unlikely that anybody besides you is ever going to choose to use this identifier over (vs. 44.86,-87.23 which would be imprecise enough to include a lot of places to which people might want to refer). I may just be misunderstanding the purpose you intend.
The other question is a more general one. Do we need more ways to specify uncertainty in location than we already have? We already have dwc:coordinateUncertaintyInMeters and dwc:coordinatePrecision . I've been using dwc:coordinateUncertaintyInMeters with a seat-of-the pants estimate on my part about how accurate I think my geolocation is (expressed in meters). That may be a misuse of this term because I'm really thinking radius around a point rather than uncertainty of coordinates. But as a practical matter, if I think my estimate of location is good to 1000 m (vs. 100 m or 10000 m) does it really matter if I'm talking about a square or a circle? In any case, I'm saying, this lat/long could be off from the actual location by a km. If I had a GPS receiver that allowed me to download the actual estimated accuracy (based on satellite signals and whatever else), then I would populate dwc:coordinateUncertaintyInMeters with that, but mine crummy old one doesn't. To me the most important thing is for users to know whether this is a ballpark estimate or if they could expect to actually be able to walk up to the tree using the coordinates they give.
Steve
Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> dcterms:isPartOf rdf:resource="http://lod.taxonconcept.org/ontology/void#this"/
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-09T16:33:34-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> txn:elevation186.54</txn:elevation> txn:continentNorth America</txn:continent> txn:countryCodeUS</txn:countryCode> txn:countryUnited States</txn:country> txn:stateProvinceWisconsin</txn:stateProvince> txn:countyDoor</txn:county> txn:localityTextTown of Sevastopol</txn:localityText> txn:locationNameShivering Sands Natural Area Woods</txn:locationName> txn:areaHasOccurrence rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurrence"/ txn:areaHasObservedSpeciesConcept rdf:resource="http://lod.taxonconcept.org/ses/ICmLC#Species"/ txn:areaHasIndividual rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individual"/ txn:areaInStateProvince rdf:resource="http://sws.geonames.org/5279468/"/ <txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/%22/%3E wdrs:describedBy rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf"/ </dwc_area:Area>
I recently added the following predicates, but have not altered my RDF examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
-- Steven J. Baskauf, Ph.D., Senior Lecturer Vanderbilt University Dept. of Biological Sciences
postal mail address: VU Station B 351634 Nashville, TN 37235-1634, U.S.A.
delivery address: 2125 Stevenson Center 1161 21st Ave., S. Nashville, TN 37235
office: 2128 Stevenson Center phone: (615) 343-4582, fax: (615) 343-6707
http://bioimages.vanderbilt.edu
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
<area_sparql_query.jpg>
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
tdwg-content mailing list tdwg-content@lists.tdwg.org http://lists.tdwg.org/mailman/listinfo/tdwg-content
Bob, It is not clear what you are getting at.
which become a matter of choice when the provider and the map maker are
one in the same.
Are you saying that GBIF is the only entity that will be processing and mapping these records?
There is nothing in what I propose that won't also make these easier and more efficient for GBIF.
It is simply a standardized WGS84 latitude, longitude, radius and an integer link to the next higher level in the geographic hierarchy.
There are a number of tools and libraries for both end users and data servers that already understand the geo vocabulary.
It is the same vocabulary used for georss etc., with the addition of a radius.
Millions of records in this format would be much easier to parse and store than the numerous variations that occur in the current DarwinCore.
How many different forms of the literal "WGS84" will they need to be able to recognize and parse correctly under the current standard?
Do DarwinCore users find the current standard confusing and often put the wrong things into the different fields?
Also try googling *"geo:44.86528100,-87.23147800;u=10" *Aren't all the returned records appropriate?
* I am not suggesting that the current DarwinCore be changed, just that this format be added.
The main burden will fall on Markus and other tool builders who help make
mapping issues invisible to undersupported data providers in ways that don't depend very much on what the mapping is from.
Yes, so maybe this would be best decided by Markus and the other GBIF people. If it make sense to them, then the best place for it might be in the GBIF vocabulary.
Respectfully,
- Pete
On Mon, Nov 22, 2010 at 1:46 PM, Bob Morris morris.bob@gmail.com wrote:
- Hundreds of millions of existing occurrence records already live in
relational databases with their own choice of geospatial and other vocabularies, some standard, some not. Except in the few(?) cases that their Relational schema is DwC, they have to map their local schemas to DwC for their service responses. It's likely inconsequentially more work to map to some other vocabulary that is also semantically similar to theirs than to map to DDwC. The main burden will fall on Markus and other tool builders who help make mapping issues invisible to undersupported data providers in ways that don't depend very much on what the mapping is from. They'll have robustness requirements imposed on them which become a matter of choice when the provider and the map maker are one in the same.
On Mon, Nov 22, 2010 at 10:48 AM, Peter DeVries pete.devries@gmail.com wrote:
Hi Markus,
In general I feel lots of the latest threads (though I have to admit I hadnt had the time to read them all) seem to rather discuss the
(re)creation
of a new tdwg ontology instead of suggesting changes to darwin core.
Darwin
Core is ratified and I think we should refrain from taking every single
term
it has to pieces, redefine its definition and reconstruct it in
different
ways because of linked data demands.
We might be better off to start something new for the LOD world.
I agree. For three main reasons,
- The current DarwinCore works for what it was originally intended.
- Creating something that works well for the semantic web is somewhat
tricky and will take some time. 3) I think this discussion is confusing potential DarwinCore users. My main goal was to figure out a "home" for this ontology, and it seems
as
if TDWG only wants to use things in it's namespace. It is my feeling that other groups like EUNIS will want to use this so I would like to figure out the final ontology uri soon. I could add this to the txn ontology, but I think it has utility even outside biodiversity informatics.
- Pete
Here is an example with some of the non-relevant stuff taken out.
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title>
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier>
dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-19T22:17:37-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> <dwc_area:areaWithInFeature rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource="
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf "/>
</dwc_area:Area>
What I have done with my examples is standardized on a fixed precision to the lat and log.
The level of precision does not have be this high, we just need to
have
an agreed on level of precision. (Probably something that we should do anyway since the actual
precision
should not be inferred by the significant digits.)
So Steve's 44.86,-87.23 => 44.86000000, -87.23000000.
Now we have a standard urn-like entity for an area that follows the proposed ietf standard.
Other data like soil type, weather etc can be tied to these areas.
Area1 => hasDegreeDayValue "2105"
Other areas can be related to this area Area1 within Area2, AreaB near AreaC etc.
AreaZ within NaturePreserveB
Also the following was recently proposed by the ietf.org
A Uniform Resource Identifier for Geographic Locations ('geo' URI) http://tools.ietf.org/html/rfc5870 (from Sean Gillies)
- Not clear that all the systems understand this but URIburner and
Virtuoso interprets these as a URN type thing so they work but are not understood in the way that the "geo" vocabulary is understood. Note
that if
and when this becomes a standard it will allow these "Areas" to be universally understood.
What this means is that I can markup my 10,0000 mosquito records from one location with one URN type id.
In summary, these allow more efficient occurrence records that
leverage
the existing support for the geo vocabulary and the probably support
for the
ietf.org standard.
I have added some predicate to the vocabulary that allow inferencing from the area through the geonames hierarchy.
This would allow one to infer the following about the record above.
Area > areaWithInFeature => Door County => Wisconsin => United States
=>
North America = Earth
This does not mean that additions could also be made that allow inferencing up some other non-geonames hierarchy.
Here is the ontology
http://lod.taxonconcept.org/ontology/dwc_area.owl
Here is the owl doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
Here is an example of an occurrence record that uses this:
HTML
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.html
RDF
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf
Respectfully,
- Pete
On Fri, Nov 19, 2010 at 12:32 PM, Steve Baskauf steve.baskauf@vanderbilt.edu wrote: Pete, I was going to ask questions about this the first time you mentioned
it,
but got distracted. I guess the main question I have is: what you
would
"do" with it? I guess it could be considered an identifier for a spot
on
the earth, but based on what I've read about guids it's considered to
be a
"no-no" to try to infer stuff about a resource by looking at the form
of the
identifier. Rather one should look at the metadata associated with
the
identifier to understand things about the identifier (which you
provide with
geo:lat and geo:long). I suppose that one could consider this to be
some
kind of identifier that could be reused, but particularly since the precision of your lat and long are 8 digits, it is highly unlikely
that
anybody besides you is ever going to choose to use this identifier
over (vs.
44.86,-87.23 which would be imprecise enough to include a lot of
places to
which people might want to refer). I may just be misunderstanding the purpose you intend.
The other question is a more general one. Do we need more ways to specify uncertainty in location than we already have? We already have dwc:coordinateUncertaintyInMeters and dwc:coordinatePrecision . I've
been
using dwc:coordinateUncertaintyInMeters with a seat-of-the pants
estimate on
my part about how accurate I think my geolocation is (expressed in
meters).
That may be a misuse of this term because I'm really thinking radius
around
a point rather than uncertainty of coordinates. But as a practical
matter,
if I think my estimate of location is good to 1000 m (vs. 100 m or
10000 m)
does it really matter if I'm talking about a square or a circle? In
any
case, I'm saying, this lat/long could be off from the actual location
by a
km. If I had a GPS receiver that allowed me to download the actual estimated accuracy (based on satellite signals and whatever else),
then I
would populate dwc:coordinateUncertaintyInMeters with that, but mine
crummy
old one doesn't. To me the most important thing is for users to know whether this is a ballpark estimate or if they could expect to
actually be
able to walk up to the tree using the coordinates they give.
Steve
Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the
widely
used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly
understood
urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in
incorporating this
into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> dcterms:isPartOf rdf:resource="http://lod.taxonconcept.org/ontology/void#this"/
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier>
<dcterms:created>2010-10-28T00:00:00-0500</dcterms:created> <dcterms:modified>2010-11-09T16:33:34-0600</dcterms:modified> <geo:lat>44.86528100</geo:lat> <geo:long>-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> <txn:elevation>186.54</txn:elevation> <txn:continent>North America</txn:continent> <txn:countryCode>US</txn:countryCode> <txn:country>United States</txn:country> <txn:stateProvince>Wisconsin</txn:stateProvince> <txn:county>Door</txn:county> <txn:localityText>Town of Sevastopol</txn:localityText> <txn:locationName>Shivering Sands Natural AreaWoods</txn:locationName> <txn:areaHasOccurrence rdf:resource="
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... "/>
<txn:areaHasObservedSpeciesConceptrdf:resource="http://lod.taxonconcept.org/ses/ICmLC#Species%22/%3E <txn:areaHasIndividual rdf:resource="
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... "/>
<txn:areaInStateProvincerdf:resource="http://sws.geonames.org/5279468/%22/%3E <txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/
"/>
<wdrs:describedByrdf:resource="
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf "/>
</dwc_area:Area>
I recently added the following predicates, but have not altered my
RDF
examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a
Geonames
"Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
-- Steven J. Baskauf, Ph.D., Senior Lecturer Vanderbilt University Dept. of Biological Sciences
postal mail address: VU Station B 351634 Nashville, TN 37235-1634, U.S.A.
delivery address: 2125 Stevenson Center 1161 21st Ave., S. Nashville, TN 37235
office: 2128 Stevenson Center phone: (615) 343-4582, fax: (615) 343-6707
http://bioimages.vanderbilt.edu
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
<area_sparql_query.jpg>
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
tdwg-content mailing list tdwg-content@lists.tdwg.org http://lists.tdwg.org/mailman/listinfo/tdwg-content
-- Robert A. Morris Emeritus Professor of Computer Science UMASS-Boston 100 Morrissey Blvd Boston, MA 02125-3390 Associate, Harvard University Herbaria email: morris.bob@gmail.com web: http://bdei.cs.umb.edu/ web: http://etaxonomy.org/mw/FilteredPush http://www.cs.umb.edu/~ram phone (+1) 857 222 7992 (mobile)
Sorry to be opaque. I was trying to agree with the position you and Markus espoused by adding that the problem of emitting something else than Darwin Core based on new usecases is not very hard. It is not, generally speaking, either harder or easier than emitting Darwin Core. That's because most occurrence data is being held in something that is not DarwinCore. The secondary point was that just because something is easy to engineer, one should not expect it to be quick to engineer.
On Mon, Nov 22, 2010 at 5:59 PM, Peter DeVries pete.devries@gmail.com wrote:
Bob, It is not clear what you are getting at.
which become a matter of choice when the provider and the map maker are one in the same.
Are you saying that GBIF is the only entity that will be processing and mapping these records? There is nothing in what I propose that won't also make these easier and more efficient for GBIF. It is simply a standardized WGS84 latitude, longitude, radius and an integer link to the next higher level in the geographic hierarchy. There are a number of tools and libraries for both end users and data servers that already understand the geo vocabulary. It is the same vocabulary used for georss etc., with the addition of a radius. Millions of records in this format would be much easier to parse and store than the numerous variations that occur in the current DarwinCore. How many different forms of the literal "WGS84" will they need to be able to recognize and parse correctly under the current standard? Do DarwinCore users find the current standard confusing and often put the wrong things into the different fields? Also try googling "geo:44.86528100,-87.23147800;u=10" Aren't all the returned records appropriate?
- I am not suggesting that the current DarwinCore be changed, just that this
format be added.
The main burden will fall on Markus and other tool builders who help make mapping issues invisible to undersupported data providers in ways that don't depend very much on what the mapping is from.
Yes, so maybe this would be best decided by Markus and the other GBIF people. If it make sense to them, then the best place for it might be in the GBIF vocabulary. Respectfully,
- Pete
On Mon, Nov 22, 2010 at 1:46 PM, Bob Morris morris.bob@gmail.com wrote:
- Hundreds of millions of existing occurrence records already live in
relational databases with their own choice of geospatial and other vocabularies, some standard, some not. Except in the few(?) cases that their Relational schema is DwC, they have to map their local schemas to DwC for their service responses. It's likely inconsequentially more work to map to some other vocabulary that is also semantically similar to theirs than to map to DDwC. The main burden will fall on Markus and other tool builders who help make mapping issues invisible to undersupported data providers in ways that don't depend very much on what the mapping is from. They'll have robustness requirements imposed on them which become a matter of choice when the provider and the map maker are one in the same.
On Mon, Nov 22, 2010 at 10:48 AM, Peter DeVries pete.devries@gmail.com wrote:
Hi Markus,
In general I feel lots of the latest threads (though I have to admit I hadnt had the time to read them all) seem to rather discuss the (re)creation of a new tdwg ontology instead of suggesting changes to darwin core. Darwin Core is ratified and I think we should refrain from taking every single term it has to pieces, redefine its definition and reconstruct it in different ways because of linked data demands.
We might be better off to start something new for the LOD world.
I agree. For three main reasons,
- The current DarwinCore works for what it was originally intended.
- Creating something that works well for the semantic web is somewhat
tricky and will take some time. 3) I think this discussion is confusing potential DarwinCore users. My main goal was to figure out a "home" for this ontology, and it seems as if TDWG only wants to use things in it's namespace. It is my feeling that other groups like EUNIS will want to use this so I would like to figure out the final ontology uri soon. I could add this to the txn ontology, but I think it has utility even outside biodiversity informatics.
- Pete
Here is an example with some of the non-relevant stuff taken out.
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title>
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-19T22:17:37-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> <dwc_area:areaWithInFeature rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy
rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf%22/... </dwc_area:Area>
What I have done with my examples is standardized on a fixed precision to the lat and log.
The level of precision does not have be this high, we just need to have an agreed on level of precision. (Probably something that we should do anyway since the actual precision should not be inferred by the significant digits.)
So Steve's 44.86,-87.23 => 44.86000000, -87.23000000.
Now we have a standard urn-like entity for an area that follows the proposed ietf standard.
Other data like soil type, weather etc can be tied to these areas.
Area1 => hasDegreeDayValue "2105"
Other areas can be related to this area Area1 within Area2, AreaB near AreaC etc.
AreaZ within NaturePreserveB
Also the following was recently proposed by the ietf.org
A Uniform Resource Identifier for Geographic Locations ('geo' URI) http://tools.ietf.org/html/rfc5870 (from Sean Gillies)
- Not clear that all the systems understand this but URIburner and
Virtuoso interprets these as a URN type thing so they work but are not understood in the way that the "geo" vocabulary is understood. Note that if and when this becomes a standard it will allow these "Areas" to be universally understood.
What this means is that I can markup my 10,0000 mosquito records from one location with one URN type id.
In summary, these allow more efficient occurrence records that leverage the existing support for the geo vocabulary and the probably support for the ietf.org standard.
I have added some predicate to the vocabulary that allow inferencing from the area through the geonames hierarchy.
This would allow one to infer the following about the record above.
Area > areaWithInFeature => Door County => Wisconsin => United States => North America = Earth
This does not mean that additions could also be made that allow inferencing up some other non-geonames hierarchy.
Here is the ontology http://lod.taxonconcept.org/ontology/dwc_area.owl Here is the owl doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
Here is an example of an occurrence record that uses this:
HTML
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.html RDF
http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf
Respectfully,
- Pete
On Fri, Nov 19, 2010 at 12:32 PM, Steve Baskauf steve.baskauf@vanderbilt.edu wrote: Pete, I was going to ask questions about this the first time you mentioned it, but got distracted. I guess the main question I have is: what you would "do" with it? I guess it could be considered an identifier for a spot on the earth, but based on what I've read about guids it's considered to be a "no-no" to try to infer stuff about a resource by looking at the form of the identifier. Rather one should look at the metadata associated with the identifier to understand things about the identifier (which you provide with geo:lat and geo:long). I suppose that one could consider this to be some kind of identifier that could be reused, but particularly since the precision of your lat and long are 8 digits, it is highly unlikely that anybody besides you is ever going to choose to use this identifier over (vs. 44.86,-87.23 which would be imprecise enough to include a lot of places to which people might want to refer). I may just be misunderstanding the purpose you intend.
The other question is a more general one. Do we need more ways to specify uncertainty in location than we already have? We already have dwc:coordinateUncertaintyInMeters and dwc:coordinatePrecision . I've been using dwc:coordinateUncertaintyInMeters with a seat-of-the pants estimate on my part about how accurate I think my geolocation is (expressed in meters). That may be a misuse of this term because I'm really thinking radius around a point rather than uncertainty of coordinates. But as a practical matter, if I think my estimate of location is good to 1000 m (vs. 100 m or 10000 m) does it really matter if I'm talking about a square or a circle? In any case, I'm saying, this lat/long could be off from the actual location by a km. If I had a GPS receiver that allowed me to download the actual estimated accuracy (based on satellite signals and whatever else), then I would populate dwc:coordinateUncertaintyInMeters with that, but mine crummy old one doesn't. To me the most important thing is for users to know whether this is a ballpark estimate or if they could expect to actually be able to walk up to the tree using the coordinates they give.
Steve
Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> dcterms:isPartOf rdf:resource="http://lod.taxonconcept.org/ontology/void#this"/
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-09T16:33:34-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> txn:elevation186.54</txn:elevation> txn:continentNorth America</txn:continent> txn:countryCodeUS</txn:countryCode> txn:countryUnited States</txn:country> txn:stateProvinceWisconsin</txn:stateProvince> txn:countyDoor</txn:county> txn:localityTextTown of Sevastopol</txn:localityText> txn:locationNameShivering Sands Natural Area Woods</txn:locationName> <txn:areaHasOccurrence
rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... txn:areaHasObservedSpeciesConcept rdf:resource="http://lod.taxonconcept.org/ses/ICmLC#Species"/ <txn:areaHasIndividual
rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... txn:areaInStateProvince rdf:resource="http://sws.geonames.org/5279468/"/ txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/"/ <wdrs:describedBy
rdf:resource="http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf%22/... </dwc_area:Area>
I recently added the following predicates, but have not altered my RDF examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
-- Steven J. Baskauf, Ph.D., Senior Lecturer Vanderbilt University Dept. of Biological Sciences
postal mail address: VU Station B 351634 Nashville, TN 37235-1634, U.S.A.
delivery address: 2125 Stevenson Center 1161 21st Ave., S. Nashville, TN 37235
office: 2128 Stevenson Center phone: (615) 343-4582, fax: (615) 343-6707
http://bioimages.vanderbilt.edu
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
<area_sparql_query.jpg>
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
tdwg-content mailing list tdwg-content@lists.tdwg.org http://lists.tdwg.org/mailman/listinfo/tdwg-content
-- Robert A. Morris Emeritus Professor of Computer Science UMASS-Boston 100 Morrissey Blvd Boston, MA 02125-3390 Associate, Harvard University Herbaria email: morris.bob@gmail.com web: http://bdei.cs.umb.edu/ web: http://etaxonomy.org/mw/FilteredPush http://www.cs.umb.edu/~ram phone (+1) 857 222 7992 (mobile)
--
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base / GeoSpecies Knowledge Base About the GeoSpecies Knowledge Base
On 20/11/2010, at 5:32 AM, Steve Baskauf wrote:
The other question is a more general one. Do we need more ways to specify uncertainty in location than we already have? We already have
Another thing: our data distinguishes between "X is known to occur in Australia" and "X is ubiquitous throughout Australia" (eg: rabbits). I believe the first often crops up in historical data when some document states that X was seen in Novo Hollandiae, and we don't know anything more than that.
If you have received this transmission in error please notify us immediately by return e-mail and delete all copies. If this e-mail or any attachments have been sent to you in error, that error does not constitute waiver of any confidentiality, privilege or copyright in respect of information in the e-mail or attachments.
Please consider the environment before printing this email.
*>The other question is a more general one. Do we need more ways to specify uncertainty in location than we already have? We already have dwc:coordinateUncertaintyInMeters and dwc:coordinatePrecision . I've been using dwc:coordinateUncertaintyInMeters with a seat-of-the pants estimate on my part about how accurate I think my geolocation is (expressed in meters). *
Because the tools and services do not know how to interpret these dwc:predicates and they do not make use of widely used existing standards.
In a sense, I am not reinventing the wheel. I am taking existing standards and extending them so that they have the additional attributes that TWDG says are needed.
- Pete
Steve
Peter DeVries wrote:
I wrote about this earlier but I never heard anything back.
I have made something that uses the geo vocabulary but also allows pointRadiusSpatial fit measure that I call radius.
The advantage is that this adds a standard way to deal use something like an extent or pointRadiusSpatial while still benefiting from the widely used geo vocabulary.
It also allows these "Areas" to be referenced in a commonly understood urn way that using a ietf standard.
For example: "geo:44.86528100,-87.23147800;u=10"
There are still some things I need to fix and check with this vocabulary but I am wondering if there is any interest in incorporating this into the DarwinCore.
If not I will probably change the name of the ontology.
There are also things in the example below that are not part of my proposal.
I have what I call "Areas" that look like this:
<dwc_area:Area rdf:about="geo:44.86528100,-87.23147800;u=10"> dcterms:title44.86528100, -87.23147800 Radius 10 meters</dcterms:title> <dcterms:isPartOf rdf:resource=" http://lod.taxonconcept.org/ontology/void#this%22/%3E
dcterms:identifiergeo:44.86528100,-87.23147800;u=10</dcterms:identifier> dcterms:created2010-10-28T00:00:00-0500</dcterms:created> dcterms:modified2010-11-09T16:33:34-0600</dcterms:modified> geo:lat44.86528100</geo:lat> geo:long-87.23147800</geo:long> <dwc_area:radius>10</dwc_area:radius> txn:elevation186.54</txn:elevation> txn:continentNorth America</txn:continent> txn:countryCodeUS</txn:countryCode> txn:countryUnited States</txn:country> txn:stateProvinceWisconsin</txn:stateProvince> txn:countyDoor</txn:county> txn:localityTextTown of Sevastopol</txn:localityText> txn:locationNameShivering Sands Natural Area Woods</txn:locationName> <txn:areaHasOccurrence rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Occurre... "/> <txn:areaHasObservedSpeciesConcept rdf:resource=" http://lod.taxonconcept.org/ses/ICmLC#Species%22/%3E <txn:areaHasIndividual rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9#Individ... "/> <txn:areaInStateProvince rdf:resource=" http://sws.geonames.org/5279468/%22/%3E <txn:areaInCounty rdf:resource="http://sws.geonames.org/5250768/%22/%3E <wdrs:describedBy rdf:resource=" http://ocs.taxonconcept.org/ocs/f522444a-2dd9-400e-be59-47213ef38cb9.rdf "/> </dwc_area:Area>
I recently added the following predicates, but have not altered my RDF examples.
#featureContainsArea #areaWithInFeature
http://lod.taxonconcept.org/ontology/dwc_area.owl
OWL Doc http://lod.taxonconcept.org/ontology/dwc_area_doc/index.html
The predicates are a bit awkward, but I wanted to be clear that this was to link an "Area" like "geo:44.86528100,-87.23147800;u=10" to a Geonames "Feature".
I thought a different set of predicates could be created to deal with some other class of "SpatialThing" if needed.
Respectfully,
- Pete
Pete DeVries Department of Entomology University of Wisconsin - Madison 445 Russell Laboratories 1630 Linden Drive Madison, WI 53706 TaxonConcept Knowledge Base http://www.taxonconcept.org/ / GeoSpecies Knowledge Base http://lod.geospecies.org/ About the GeoSpecies Knowledge Base http://about.geospecies.org/
-- Steven J. Baskauf, Ph.D., Senior Lecturer Vanderbilt University Dept. of Biological Sciences
postal mail address: VU Station B 351634 Nashville, TN 37235-1634, U.S.A.
delivery address: 2125 Stevenson Center 1161 21st Ave., S. Nashville, TN 37235
office: 2128 Stevenson Center phone: (615) 343-4582, fax: (615) 343-6707http://bioimages.vanderbilt.edu
participants (5)
-
"Markus Döring (GBIF)" -
Bob Morris -
Paul Murray -
Peter DeVries -
Steve Baskauf
